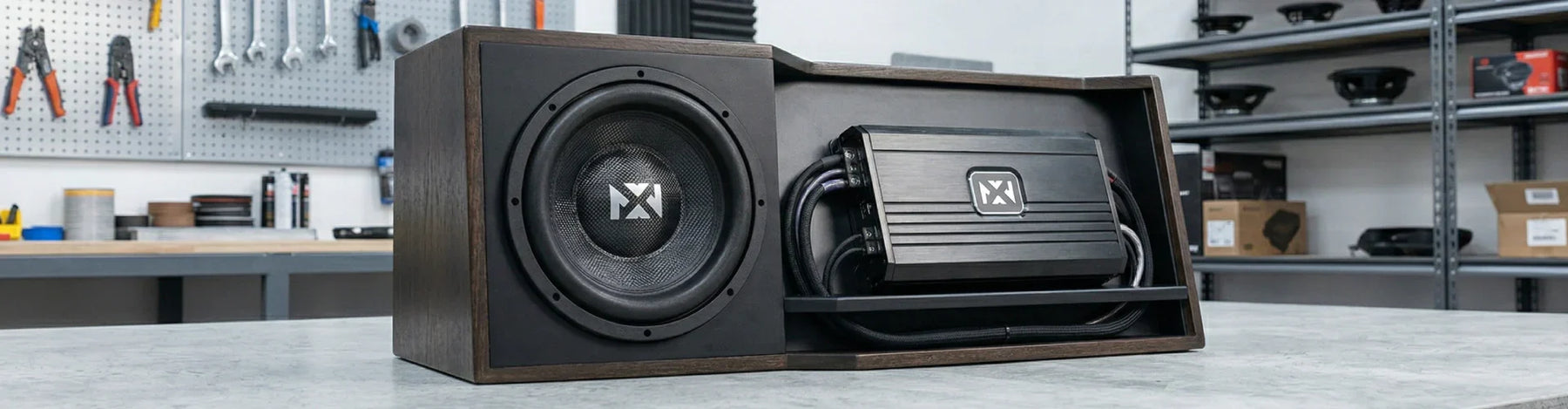

How to Build a Clean Budget System Using NVX

A clean budget system comes from realistic power goals, correct wiring, and a setup that prevents distortion. A reliable NVX path is to upgrade front speakers first, add a compact NVX amplifier for headroom, then add a modest subwoofer stage using an NVX mono amp with the filters you need.

What Does Clean Sound Mean?

Clean sound means the system plays louder without getting harsh, fuzzy, or strained. That usually comes from headroom and control, not from big numbers on a box.

A clean budget system typically has these traits:

• Door speakers are protected with a high-pass filter so they are not asked to play deep bass, which can strain them.
• The subwoofer is limited to bass frequencies with a low-pass filter.
• The amplifier is not forced into clipping because the gain is set for the source signal, not for maximum loudness.

NVX amplifiers in both the V-Series micro line and the N-Series commonly include adjustable crossovers and protection circuitry that supports this kind of setup.

How to Plan a Staged Build

A staged plan helps buyers avoid buying parts twice. Each stage produces a clear benefit and sets up the next stage.

Stage 1: Front speakers first

If the factory system sounds thin or harsh, better front speakers often make the biggest difference per dollar because they affect everything you listen to.

A practical NVX budget choice is the NVX NSP65 N-Series coaxial set, which lists 90W RMS per speaker and uses a silk dome tweeter. It is also listed as CTA-2031 compliant.

• After getting front speakers, you’ll notice:
• Vocals and cymbals sound cleaner at the same volume.
• The system needs less bass boost to sound full because midrange is clearer.

Stage 2: Add a compact 4-channel amplifier

This is where many budget builds stop sounding strained. A small amplifier adds usable headroom and allows you to use a high-pass filter properly.

Two NVX options that match this stage:

• NVX VADM4v2 micro 4-channel amplifier, which lists selectable crossover modes and RMS power ratings up to 125W x 4 at 2 ohms, along with speaker-level inputs and an 8 AWG kit recommendation.
• NVX NDA6004 N-Series 4-channel amplifier, which lists 100W x 4 at 4 ohms and 160W x 4 at 2 ohms, plus selectable crossover modes and speaker-level inputs.

Budget decision logic:

• Choose VADM4v2 when you need the smallest footprint and a stealth mount.
• Choose NDA6004 when you want more headroom and you have more mounting space.

Stage 3: Add a modest subwoofer stage

For a budget build, the goal is bass support that stays controlled, not a system that is always on the edge.

A practical NVX entry sub is the ESW104 E-Series 10-inch subwoofer. NVX lists 250W RMS and provides recommended sealed and ported volumes, which makes enclosure selection less risky.

A practical NVX mono amp for this stage is the VADM1v2, which lists 600W RMS at 1 ohm and includes a wired bass level remote, a low-pass filter, and a subsonic filter. It also lists an 8 AWG kit recommendation and provides dimensions that help fit planning.

For wiring, NVX sells a complete 8-gauge OFC kit designed for systems up to 800W RMS.

Setup rules that keep budget systems clean

• Use the high-pass filter on door speakers. It reduces cone strain and distortion.
• Use the subsonic filter for ported enclosures to reduce over-excursion below tuning. NVX VADM1v2 lists a subsonic range of 10–50 Hz.
• Treat the bass remote as a trim control, not as a substitute for gain setup. NVX VADM1v2 includes a wired remote.
• Use quality OFC wiring so voltage stays stable. NVX XKIT82 is listed as 100% OFC and is designed for systems up to 800W RMS.
