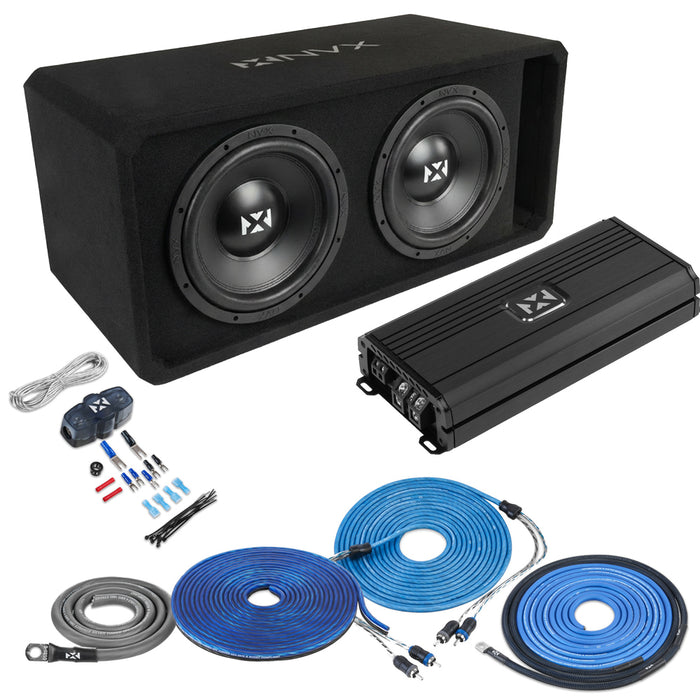

NVX Dual 12" Ported Complete Bass System w/ Sub Box, Amp, and Wiring Kit
Package Overview:
The NVX Dual 12” Ported Complete Bass System is built for serious bass enthusiasts who want powerful, high-output performance without the hassle of building a system from scratch. This all-in-one package includes dual NVX 12” subwoofers, a precision-tuned ported enclosure, a high-output 1500W monoblock amplifier, and a premium 4-gauge OFC wiring kit—delivering a complete, high-performance bass solution.
At the heart of the system are two NVX VS-Series v3 subwoofers, each rated at 600 watts RMS, for a combined 1200 watts RMS of subwoofer power handling. These are paired with a 1500 watt RMS amplifier at 1 ohm, providing ample headroom for clean, controlled bass even at higher output levels.
Package Includes:

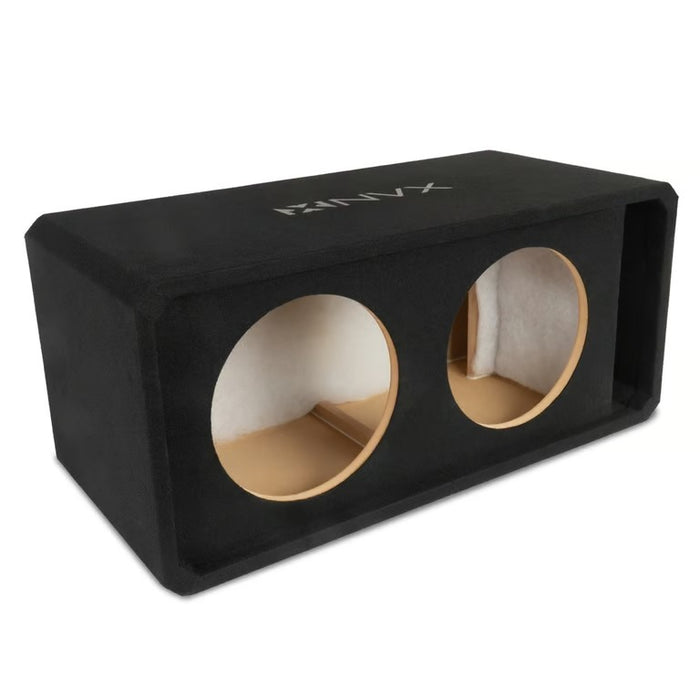

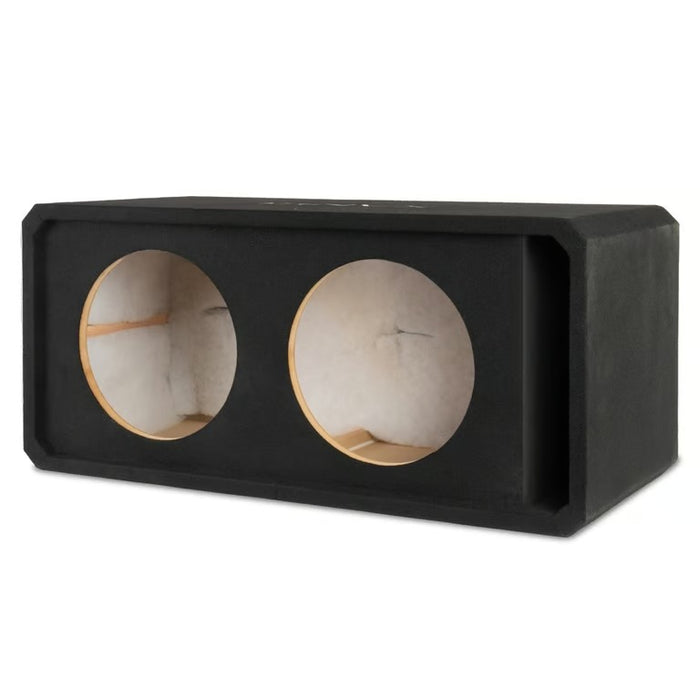

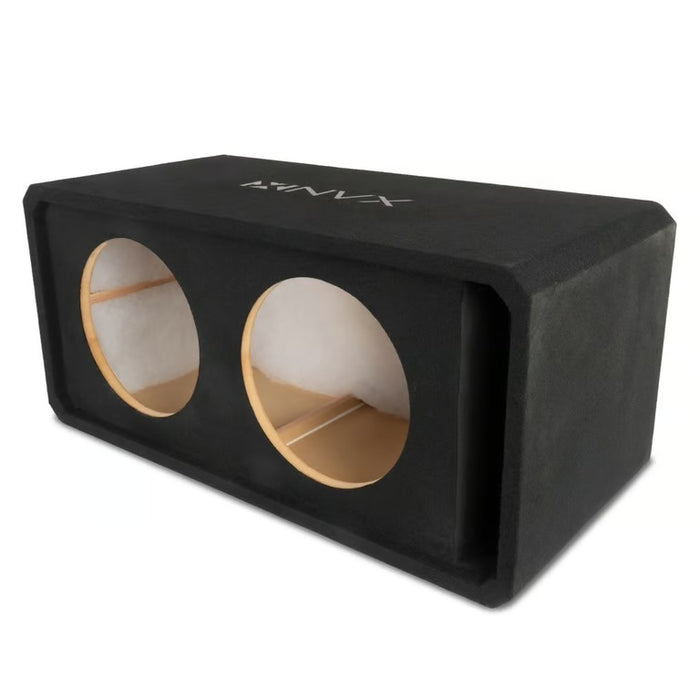

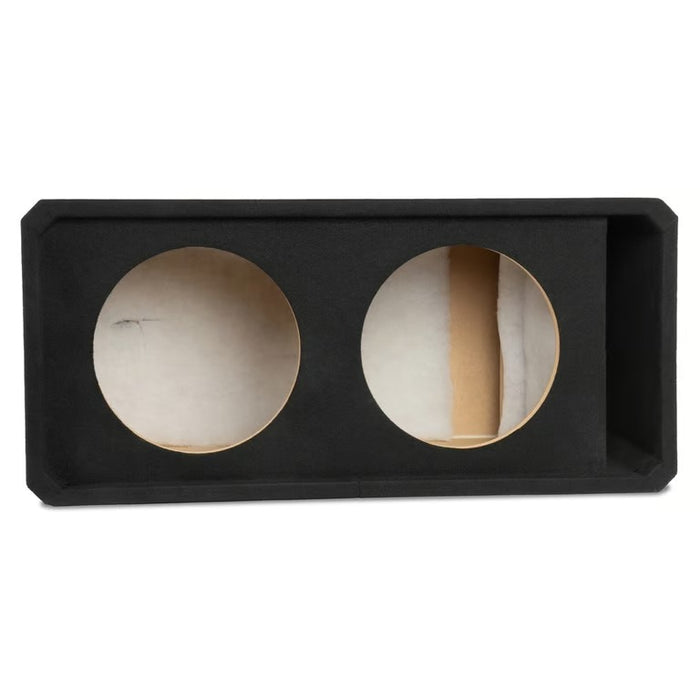

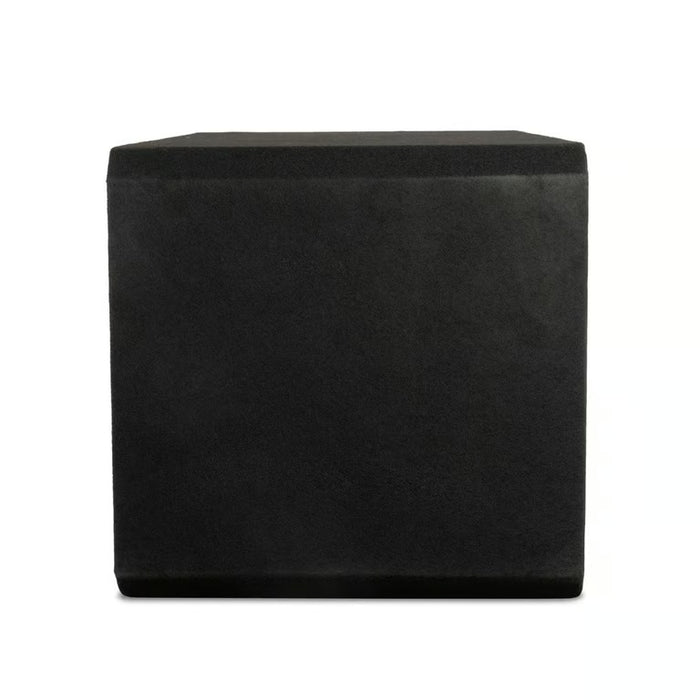

NVX NE122P
Dual 12" Slot Ported 3/4" MDF Black Carpeted Subwoofer Enclosure – 3.25 Cu. Ft. with Polyfil and NVX Logo
Quantity: 1
Product Details:
- 12" Dual Ported Subwoofer Enclosure
- Made from 3/4" Medium Density Fiberboard (MDF) construction
- Built with precision CNC technology for exceptional accuracy
- Pre-lined with Poly-Fil for improved acoustic response
- Premium Black Carpet with Black NVX Logo

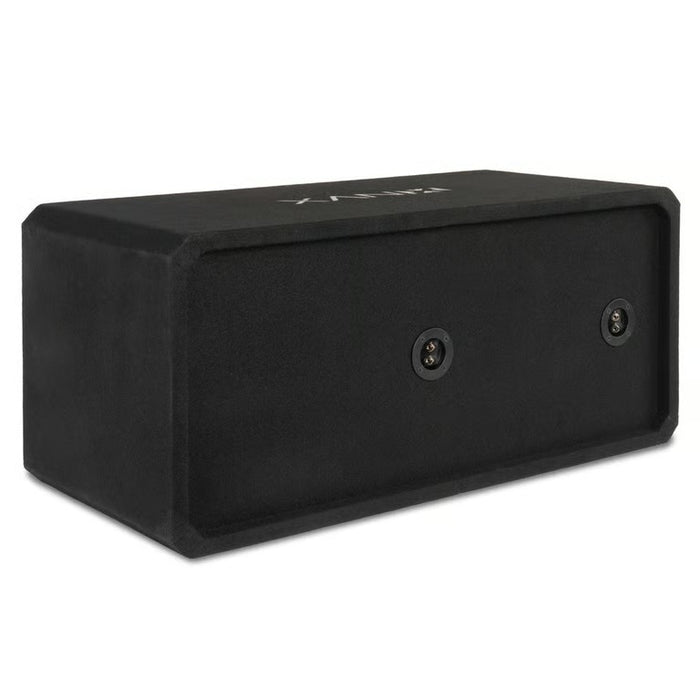

- Spring Loaded Push Terminals
- Maximum subwoofer mounting depth: 13-7/8"
- Subwoofer cutout diameter: 11-7/32"
- Internal box volume: 3.25 cubic feet
- Dimensions: 16.50" D x 35.50" W x 16.00" H
- 1-year Sonic Electronix Warranty
Port Specifications:
- Tuning Frequency: 38 Hz
- Port Width: 3"
- Port Height: 14.50"
- Port Length: 16.63"

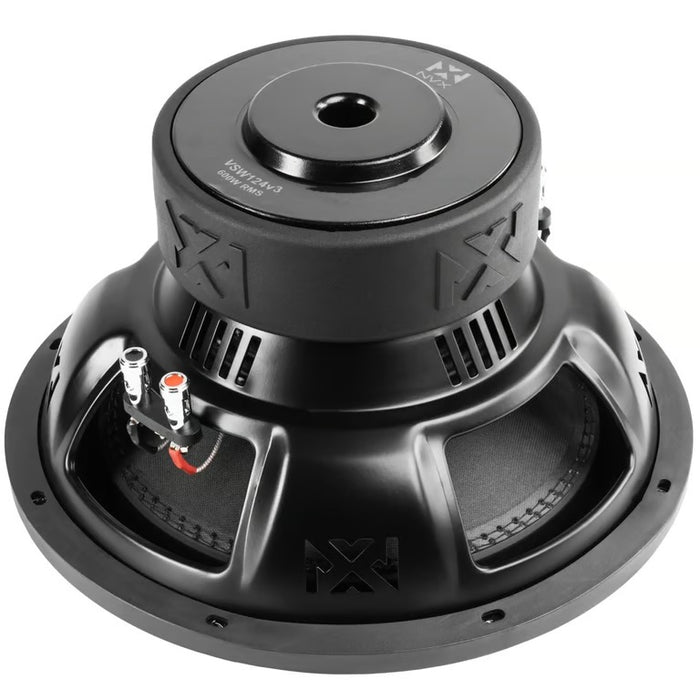

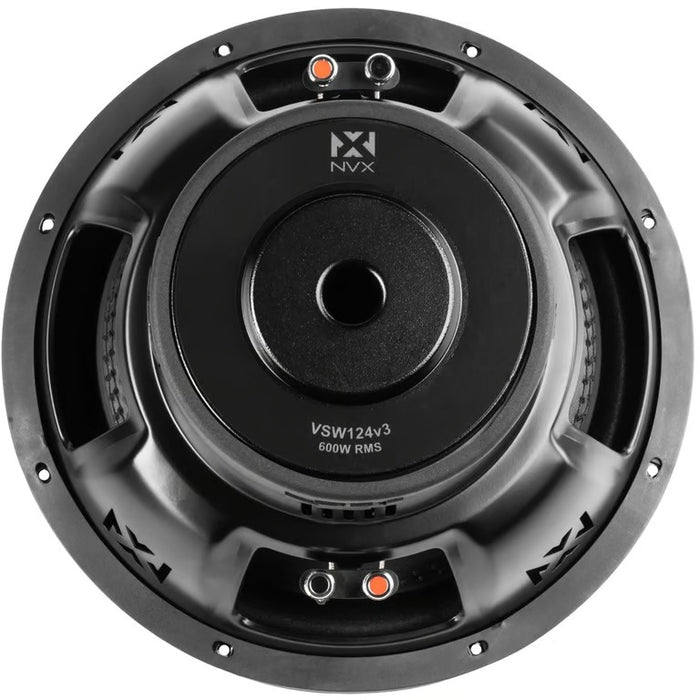

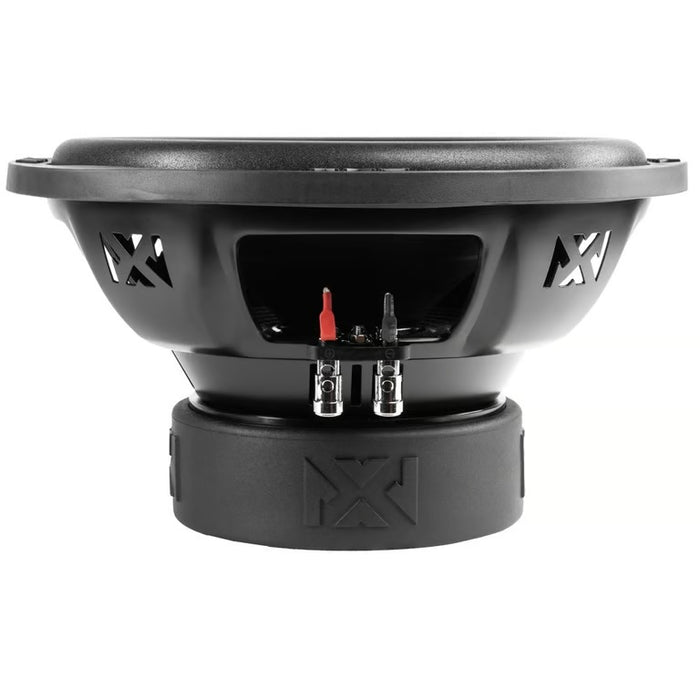

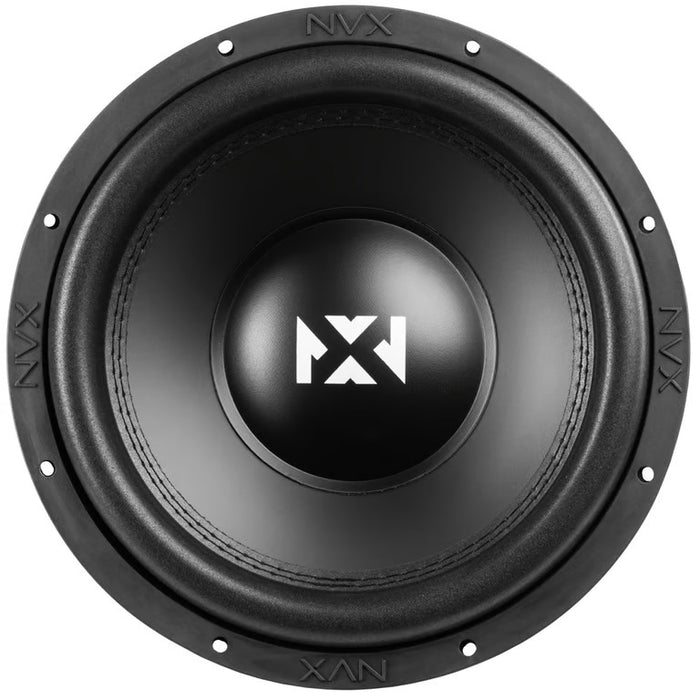

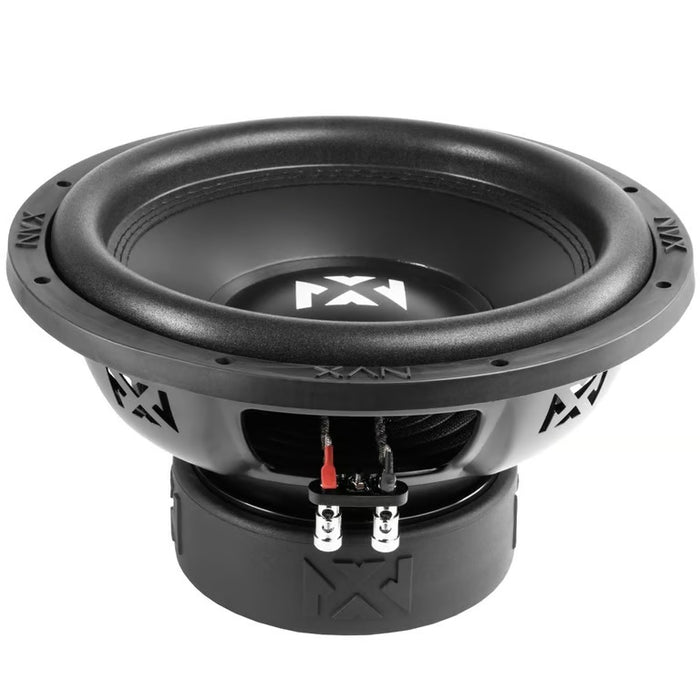

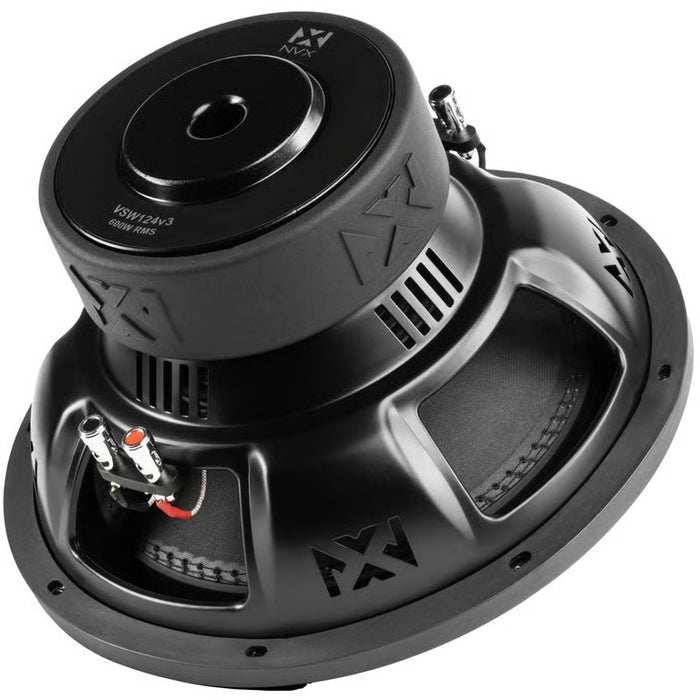

NVX VSW124 Version 3 (VSW124v3)
1200 Watt (600W RMS) 12" VS-Series v3 Dual 4-ohm Car Subwoofer
Quantity: 2
Product Details:
- 12" Dual 4 ohm VS Series Subwoofer
- Power Handling:
- Peak: 1200 watts
- RMS: 600 watts
- 13.5 mm Xmax
- Enhanced Pressed Paper Cone
- High-Roll Foam Surround with Black Nylon Stitching
- Stamped Steel Vented Basket with NVX Punched Logo
- 2.5" High Temperature Copper Voice coil with Aluminum Former
- Progressive Roll Single-layer Spider with Integrated Tinsel Leads
- Optimized High-Velocity Pole Vent
- 107 oz. Double Stacked Ferrite Magnet with Protective Rubber boot
- Frequency Response: 20 - 200 Hz
- Resonance Frequency (Fs): 37.35 Hz
- Sensitivity: 86 dB
- Recommended sealed box volume: 1.0 cubic feet
- Recommended ported box volume: 1.85 cubic feet
- Top-mount depth: 6.45"
- Cutout diameter: 11.22"
- CTA-2031 Compliant
- 1-year Manufacturer's Warranty
Priced Individually

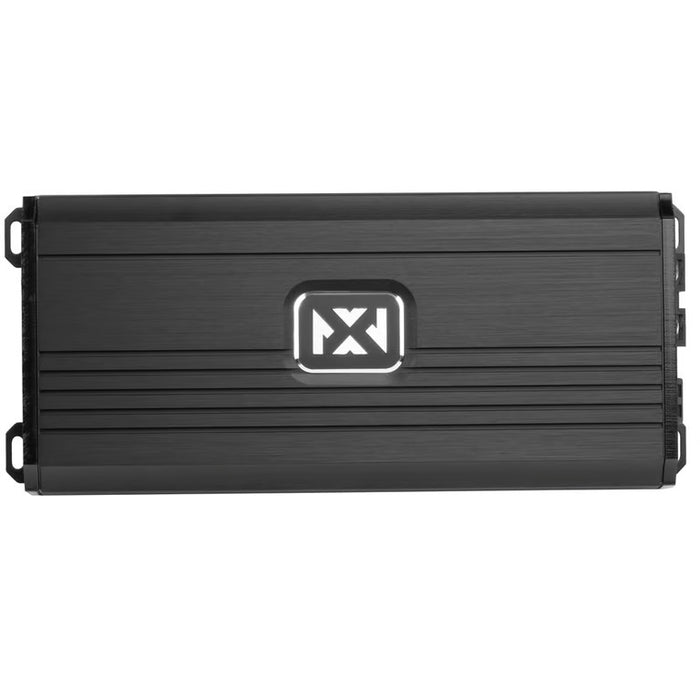

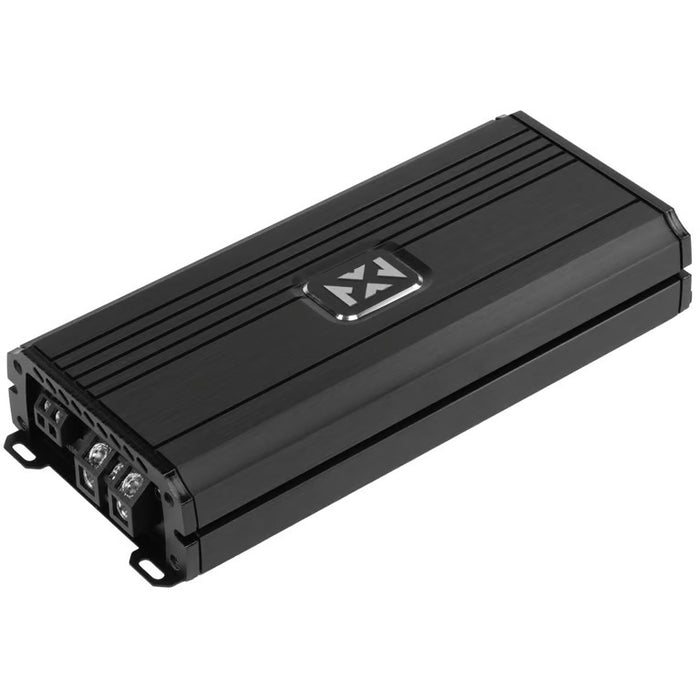

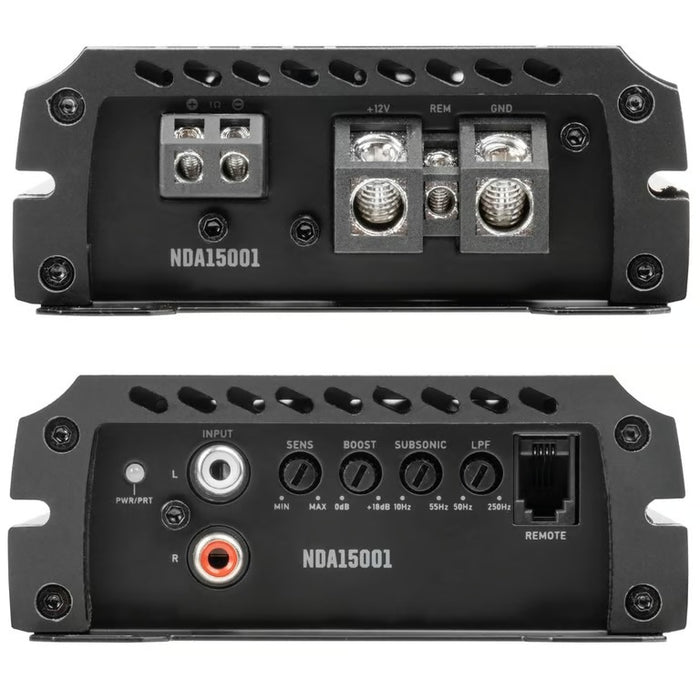

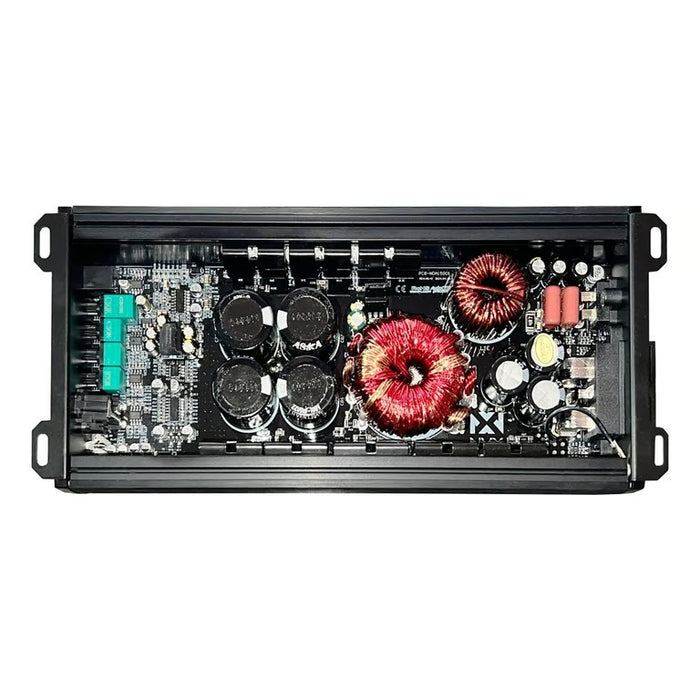

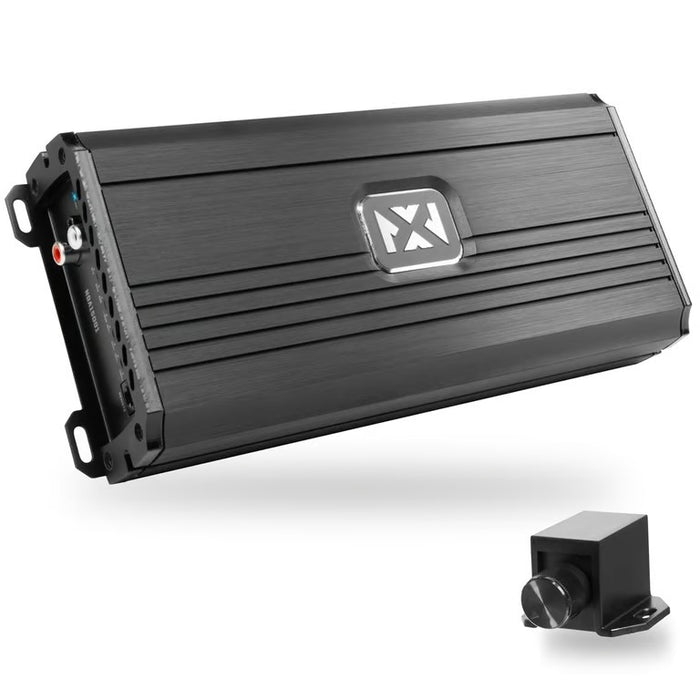

NVX NDA15001
3000W Peak (1500W RMS) N-Series Class-D 1-Ohm Stable Monoblock Amplifier with Remote Bass Knob
Quantity: 1
Product Details:
- N-Series Class D 1 ohm Stable Monoblock Amplifier
- RMS Power Rating:
- 4 ohm: 670 watts x 1 channel
- 2 ohm: 1100 watts x 1 channel
- 1 ohm: 1500 watts x 1 channel
- Total RMS power output: 1500 watts
- LED Power/Protect Light

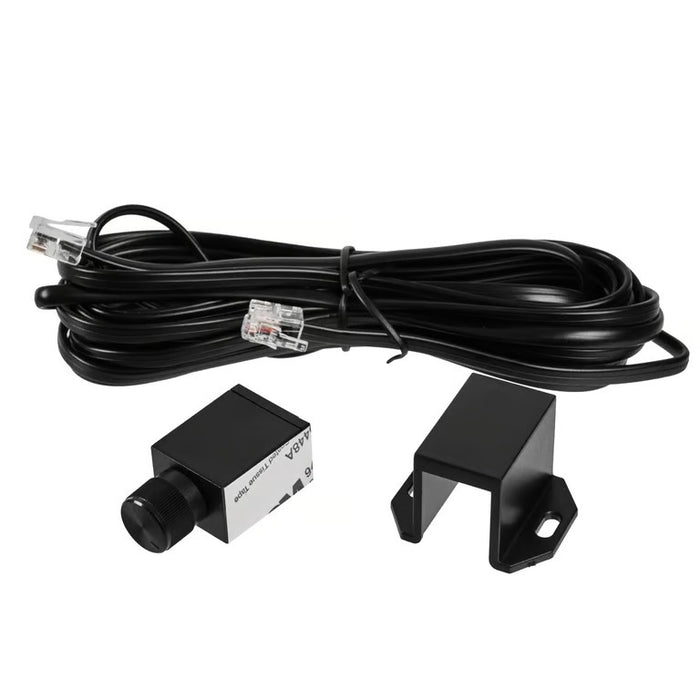

- Wired bass level remote control included
- Signal sensing remote turn-on
- 4-way protection circuitry (thermal, overload, speaker short protection and DC offset)
- Balanced differential inputs eliminate noise picked up by signal cables
- Input sensitivity:
- Low level and High level: 0.2 - 10 volts
- Frequency Response: 20 - 250 Hz
- Total Harmonic Distortion (THD): <0.1%%
- Signal to Noise Ratio: >96 dB
- Variable low-pass filter: 50 - 250 Hz
- Subsonic filter: 10 - 55 Hz
- Variable Bass Boost: 0 - 18 dB
- 4 AWG gauge amplifier wiring kit is recommended for installation
- Dimensions: 10.15" L x 4.42" W x 1.73" H
- 1 Year Manufacturer's Warranty
- MFR #: NDA15001

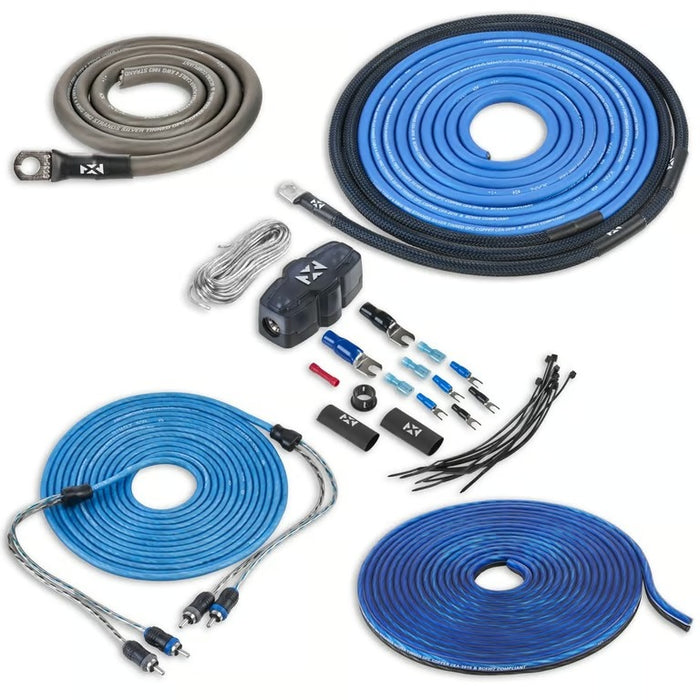

NVX XKIT42
Full Spec 4 Gauge 100% (OFC) Oxygen Free Copper Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 1500 Watts
Quantity: 1
Product Details:
- 4 Gauge 2-Channel X-Series Complete Amplifier Installation Kit
- Designed for car audio systems up to 1500 watts RMS
- Made from 100% Oxygen-Free Copper (OFC)
- Tinned conductors for corrosion resistance
- Pre-installed black nylon mesh covering protects the power wire from damage
- Solid brass and satin chromed ANL/Mini-ANL fuse holder offers ideal protection for high-powered systems
- Pre-terminated seamless power and ground ring terminals provide reliable performance
- Full spec power and speaker wire meet or exceed American Wire Gauge standards
- CEA-2015 and BC5W2 compliant
- V-Series RCA Interconnect Cable
- Shielded noise-rejecting coaxial construction provides protection against interference
- Split-tip silver-plated ends offer high-quality performance
- Molded ends equipped with colored channel identifiers for easy recognition
- Twisted-pair construction featuring two conductors per channel
- Includes an assortment of wire termination hardware and cable ties
- 1-year Manufacturer's Warranty
Includes:
- 17 ft. Frosted Blue 4 gauge power wire with seamless crimp ring terminal
- 3 ft. Frosted Black 4 gauge ground wire with seamless crimp ring terminal
- 17 ft. Clear 18 gauge remote lead wire
- 20 ft. Frosted Black/Blue 16 gauge speaker wire
- One 16.4 ft. 2-channel dual twisted construction RCA interconnect Cable (NVX XIV25)
- One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 100 amp Mini-ANL fuse
- One Black rubber firewall grommet
- Two 4 Gauge Nickel Plated spade terminals
- Four 18 Gauge Spade terminal
- Two 18 Gauge Red butt connectors
- Four 16 Gauge quick disconnect
- Five 16 Gauge Nickel Plated spade terminals
- Two Heat Shrink tubes with the NVX logo
- Ten 6" Black zip ties
